Rozelle Interchange: Lighting to Pigtail Bridge, Land Bridge Ramp, Utility Bridge, Stair ways & Underpass

Client: John Holland CPB Joint Venture

Duration: 9 Months

Date of Completion: Dec 2023

Value: $1.8m

Labour Hours: ~6,300

Elecdata has been proud to contribute to WestConnex, Australia's largest road project. The Rozelle interchange will connect the extended M4, the New M5, and the future Western Harbour Tunnel, promising a smoother, more efficient commuting experience. It's set to transform urban mobility in Sydney, reducing travel times and improving access to key areas.


Our Scope of Works include:

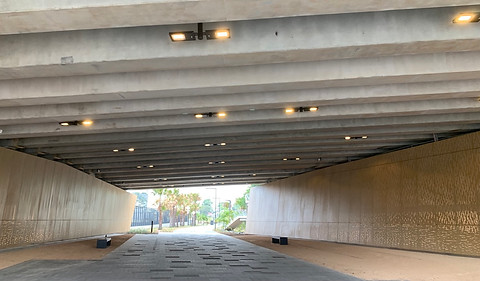

  • Public Domain feature lighting to Victoria Road Pedestrian underpass including motion sensor and DMX lighting control

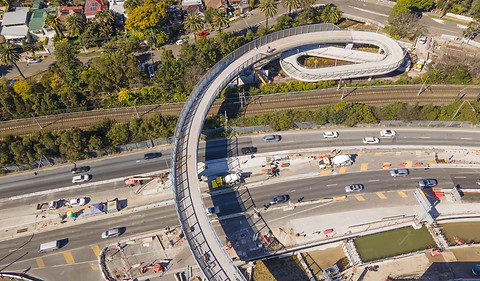

  • Supply & Installation of Pigtail Bridge lighting including light poles and throw screen lighting

  • Supply & Installation of Bridge Ramp & Utility Bridge lighting

  • Supply of light poles with custom base plates

  • Supply and Installation of RMS cabinet including Level 2 connections

  • Cabling and connection of above
